Suction Machine

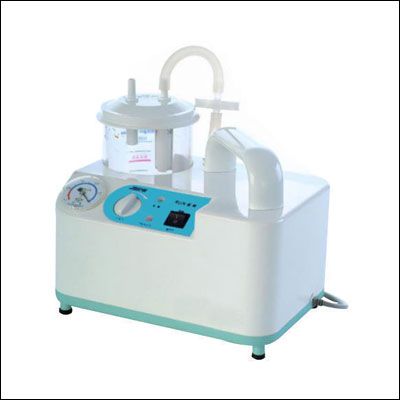

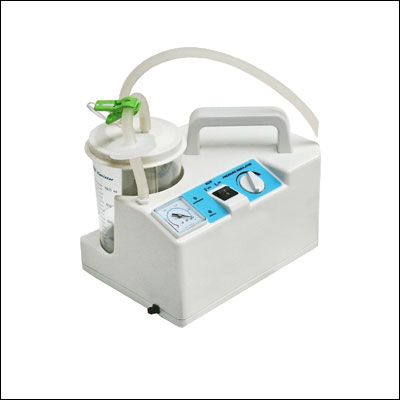

Portable suction unit model 7E- A Manufacturers & exporters Portable Suction Aspirator, ideal for small surgery in hospital ward. Vacuum continuously adjustable with vacuum indicator. Has unbreakable, 1000ml standard bottle (200ml optional) autoclavable at 120°C with safety float control valve to prevent overflow. Suction Power 30 litres /min Max suction 600mmHg.

• Power Feeding : 220V-50Hz
• Max Vacuum Adjustable : -650mmHg
• Max free air flow rate : 30 1/min
• Bottle capacity : 1000ml.(2000ml. optional)
• Years of warranty : 1
• Shipping carton : 2
• Pump : Piston/Cylinder

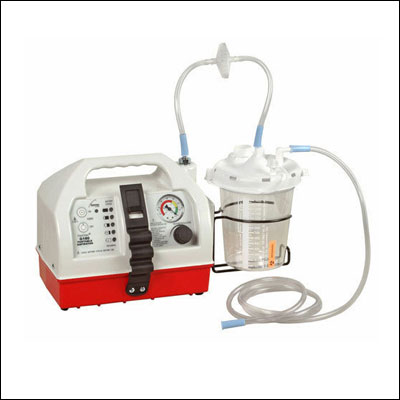

Portable suction units model 7E- A suppliers, Manufacturers & exporters With incorporated rechargeable batteries. It can operate with 12 V power supply with rechargeable batteries and thanks to an electronic system,at 230 V while recharging batteries Autonomy : 45-50minutes. Recharging time:120-150 minutes Max Suction -75 bar. Suction Power:16 litres/min. Has unbreakable 1000ml standard bottle (2000ml optional) autoclavable 120° C with safety float control valve to prevent overflow.

• Power Feeding : 220V-50Hz, 12V DC , 12V 3.AH
• Max Vacuum Adjustable : -650mmHg
• Max free air flow rate : 30 1/min
• Bottle capacity : 1000ml.(2000ml. optional)
• Years of warranty : 1
• Shipping carton : 2
• Pump : Piston/Cylinder

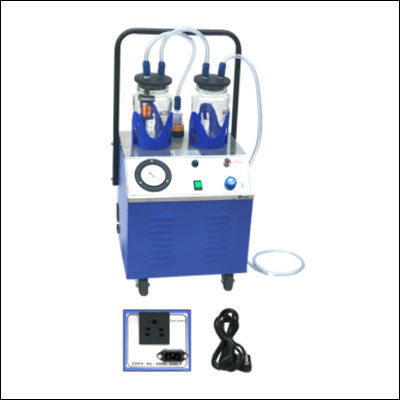

• Epoxy powder coated cabinet
• Oil immersed motorised vacuum pump
• Creates about-700mm Hg at 25 ltrs/min
• 2 graduated glass jars of 2 liters capacity each
• Synthetic rubber lids and an over flow safety device
• Long pressure tubing, vaccum control and mounted on 4 rubber castors.(Also available in Stainless Steel Cabinet)

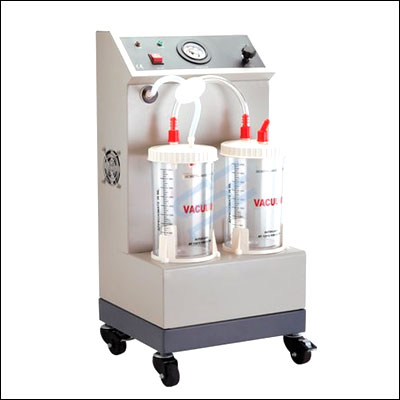

• Trolley model (regular)
• Designed & Approved by Actual users,
• Oil immersed motorised vacuum pump
• Creates about-700 : 10mm Hg at 30 ltrs/ min
• 2 graduated glass jars of 1.5 liters capacity each
• Synthetic rubber lids and an over flow safety device
• Long pressure tubing, vaccum control and mounted on 4 rubber antistatic castors.(Also available in Stainless Steel Cabinet)

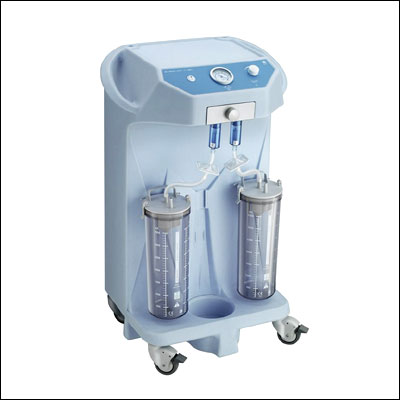

• Specially designed high vaccum suction pump
• Easy access to controls
• Smooth finish and easy to clean and maintain
• Fast and efficient jars change facility
• Non-Collapsible 10mm Tube
• Anti Static castors
• Unique removable filter
• Stainless Steel Tray Fitted on top of housing

gives easy access for keeping surgical insruments.

• Vacuum : -700+10mm Hg. controllable by knob
• Suction capacity : 35 liters/min
• Sound : 50 dB A+3 Almost Whishpers
• Jars : 2x2 Ltr. glass Jars
• Gauge : 3:0 graduated in mm Hg
• Voltage : 220V 50c/s
• Motor : Specially designed powerful electric motor by Crompton greaves
• Main Housing : Extermely robust in design and stove enamelled for long life
• Weight : 28 kg.Approx

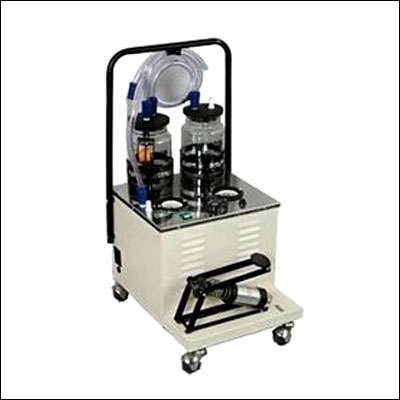

• Two separate suctiohsy systems- Electric & Pedal operated
• Must for places where electric supply is unncertain
• Creates about - 700mm Hg at 25 ltrs/ min (3 Ur.Jar)
• Stroke volume of the pedal unit approx. 200 ml. (1.5 ltr. Jar) : Ultimate vacuum -600-mm Hg

• 75 Watt motor with oil dip pump
• Creates -400mm Hg vacuum in 1.5ltr. Jar
• Almost maintenance free
• Light weight and portable

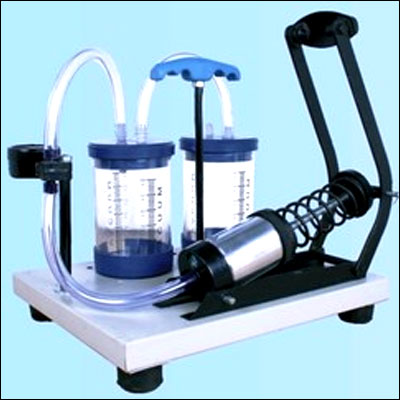

• Twin bottle portable and non-tiring pedal unit
• Efficient piston pump for creating vacuum instantly
• Outright vacuum -600mm Hg
• Fitted on epoxy powder coated M.S. base
